Tyre Module

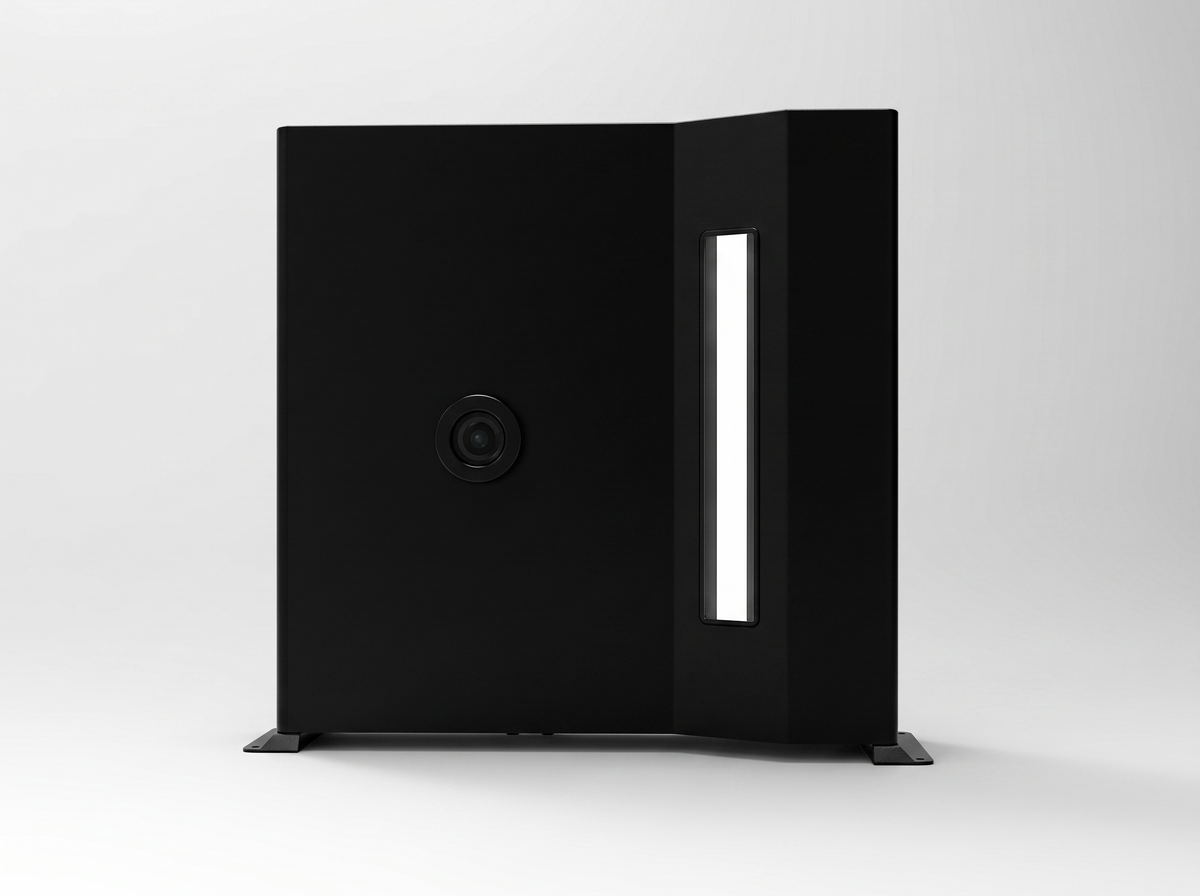

Tyre Sidewall Scanner — Commercial
Single unit, EXW Shanghai (Incoterms 2020) — exclusive of freight, insurance, duty and taxes. Delivery DAP to a GCC airport (Dubai, Jeddah, Doha and others) from USD 10,000 per complete system; indicative only, minor changes may apply. We ship worldwide — other destinations on request. An all-inclusive package to your site, including installation and operator training, is available on request. Final pricing is confirmed on quotation.
- 100+Systems installed worldwide
- 10sComplete vehicle scan
- IP65–67Rated for continuous duty
The heavy-vehicle sidewall configuration. A four-camera array extends the field of view to cover the large wheel diameters of trucks, buses and trailers at 7K resolution.

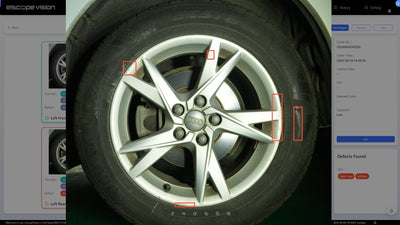

Detection
- Bulges, cuts and structural sidewall damage
- Kerb damage and wheel condition documented
- DOT number, brand and model read automatically
Specification
- Image resolution: 7K Ultra-HD
- Cameras: 4 industrial — extended field of view
- Applicable tyre diameter: 900–1100 mm
- Illumination: high-intensity LED flash
- Protection class: IP65
- Operating temperature: −10 °C to +50 °C
Specialised solution for the large wheel diameters of commercial vehicles.
Next step
Every deployment starts with an assessment of your throughput and failure points, followed by a live demonstration and a deployment model built against your actual volume.
