Commercial vehicles

DRAGATE PRO is the heavy-vehicle configuration of the CXS ARCH. Specified with an arch of up to 6 m, it inspects commercial vehicles up to 5.0 m tall at up to 10 km/h, with multi-angle true-colour capture and plate and colour identification.

Why a separate platform

A truck is not a large car.

Commercial vehicles are taller, longer and dirtier. They carry different damage patterns, and they move through a yard on a schedule that will not wait for a walk-around. DRAGATE PRO is dimensioned and powered for that reality: an arch specified up to 6 m, a 380 V / 11 kW supply, and a frame built for continuous duty.

The passenger DRAGATE tops out at 2.0 m vehicle height. Anything above that, whether a box truck, a coach, a curtainsider or a tractor unit with a high cab, needs the PRO arch, configured to the clearance your site actually requires.

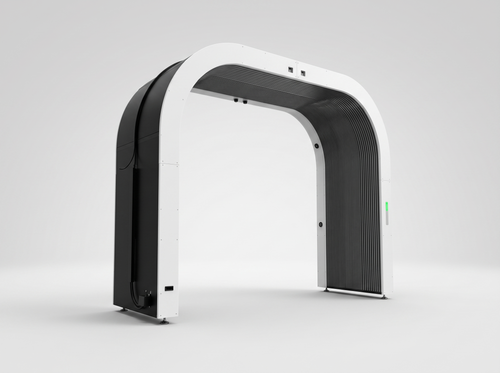

CXS DRAGATE PRO commercial ARCH scanner, product render
Product render
  • 5.0 mMaximum vehicle height
  • 6.0 mMaximum arch height
  • 1 cmBody damage, detected from
  • 10 km/hDrive-through speed

The lane

What stands on the ground.

A complete commercial lane is the arch plus the drive-over and sidewall modules. The modules can be deployed together or one at a time.

CSI demo lane in Landshut, Germany: ARCH scanner, tyre tread plates, underbody scanner, sidewall scanner and control station
Photo: CSI demo lane in Landshut, Germany
  • Tread scanner

    Drive-over platform pair with approach ramps. Tread depth to 0.3 mm, rated for a 13-tonne axle.

  • Underbody scanner

    4K line-scan of the chassis, installed on the ground or flush in the ground.

  • DRAGATE PRO arch

    Multi-angle 2K HD imaging with plate and colour identification.

  • Sidewall scanners

    One 7K camera unit per side, for tyres from 900 to 1,100 mm.

  • Control station

    Operator terminal, with processing on a local server or in the cloud.

  • No pit, no lift

    Tread and underbody run as drive-over plates. The vehicle is measured in the same pass that photographs it.

Tyre and undercarriage figures refer to the commercial variants of those modules.

Design

Built like equipment, not like a kiosk.

Brushed aluminium structure, a continuous diffused LED panel running the height of the pillar, and camera apertures recessed behind the glass line. The light is the measuring instrument: even, controlled illumination resolves a dent on a dusty curtainsider at midnight as it does at noon.

Functions

What the system captures.

  • Multi-angle body capture

    2K HD true-colour imaging records the full exterior of the unit as it drives through: tractor, trailer or rigid body.

  • Damage detection from 1 cm

    Deformation, panel damage and surface defects are located on the vehicle. A trained person confirms every chargeable finding.

  • Plate and colour identification

    Included as standard. It binds each scan to a specific unit without manual entry.

  • Undercarriage imaging

    The drive-over module adds a 4K line-scan of the chassis: leaks, corrosion, structural damage, missing components.

  • Commercial tyre measurement

    Tread depth to 0.3 mm across a 900 mm effective width, up to 13 t axle load, report in about seven seconds.

  • Sidewall and wheel

    7K cameras mark damage to the tyre sidewall, such as bulges, and to the rim, and read brand, size and DOT code. On twin tyres the inner sidewall is not captured.

One drive-through, four reports.

Every drive-through produces one report per module: body, tyre sidewall and rim, tread depth, underbody. The data goes to your systems via API.

  1. 01Body, overview
  2. 02Body per view
  3. 03Tyre sidewall and rim
  4. 04Tread depth
  5. 05Underbody

Select a page to read it

Manufacturer's sample reports, vehicle data redacted. Tyre sidewall: original report from a car scan.

Applications

Where it earns its place.

Anywhere heavy vehicles change hands, cross a boundary, or start and end a duty cycle, and the condition at that moment decides who pays.

  • Fleet and leasing

    Objective condition records at handover, return and interval checks across a mixed heavy fleet.

    • Damage attribution between driver, depot and workshop
    • End-of-lease disputes settled on documented evidence
    • Tyre wear tracked per axle over the life of the contract
  • Ports, terminals and yards

    Gate-in and gate-out inspection at the speed the yard actually runs.

    • Condition captured on entry and exit, bound to the plate
    • Liability boundary between haulier and terminal made explicit
    • No inspector standing in a live traffic lane
  • Customs and border control

    A consistent visual and undercarriage record of every vehicle crossing the line.

    • Undercarriage line-scan without a pit or a mirror trolley
    • Plate-bound, time-stamped and archived for later retrieval
    • Throughput maintained during peak crossing periods
  • Workshops, PTI and bus operators

    A repeatable intake record before a vehicle enters the workshop or the service line.

    • Pre-repair documentation that survives a later dispute
    • Tyre and chassis findings triaged before the lift is occupied
    • Consistent output regardless of shift or operator

Specification

DRAGATE PRO

Max. vehicle height
up to 5.0 m
Max. arch height
up to 6.0 m
Dimensions (L×W)
2280 × 4000 mm; arch height configured to site
Imaging
Multi-angle true-colour, 2K HD
Measurement accuracy
1 cm
Drive-through speed
up to 10 km/h
Operating temperature
−10 °C to +50 °C
Rated power
380 V / 11 kW
Installation
On-ground or in-ground
Identification
Plate and colour recognition, included
Connectivity
Gigabit Ethernet · open APIs · SAP-ready
Server options
Local and cloud

Arch height, system weight and foundation requirements depend on the configured clearance and are confirmed with the site survey.

Software and integration

The scan is the input. Your process is the output.

A condition record is only useful where your operation already works: in the yard management system, the leasing platform, the maintenance backlog.

  • Open interfaces

    Open APIs and SAP-ready output push structured results into the systems you already run, instead of adding another login.

  • Reporting

    Structured, time-stamped condition records, archived and retrievable on any device. The basis for a damage claim or an audit trail.

  • Local or cloud

    Run against local infrastructure where data must stay on site, or in the cloud where it must be reachable across locations. See the full technical overview.

Reporting layouts, thresholds and process rules are configured per deployment.

Scope a commercial lane for your site.

We review your vehicle mix, throughput and site constraints, then return a configured system, an installation plan and a firm quotation. Your first on-site session is free of charge and without obligation.

Live demonstrations at our site in Landshut, Germany.
