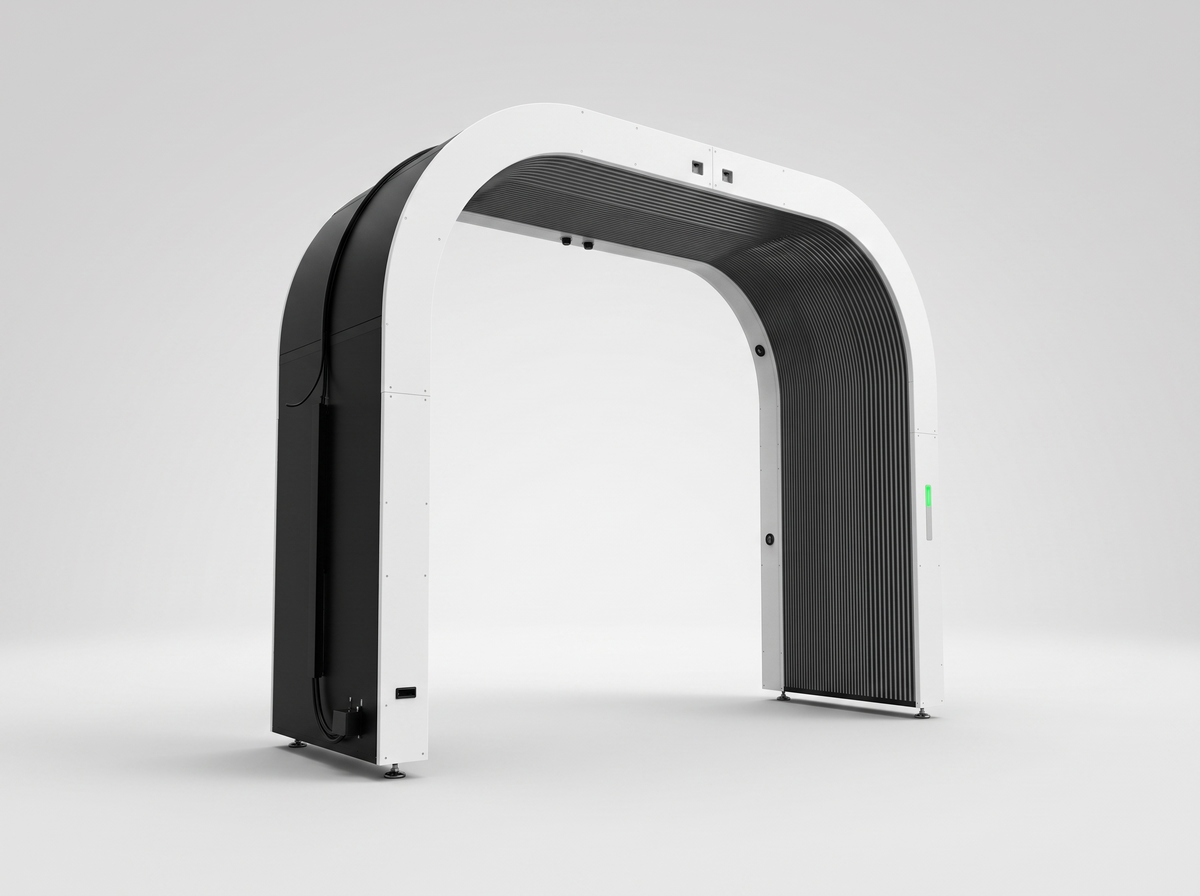

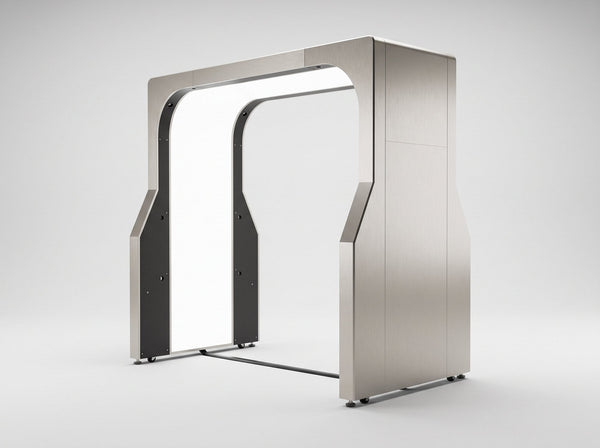

DRAGATE Flagship — 360° ARCH Body Scanner
Single unit, EXW Shanghai (Incoterms 2020) — exclusive of freight, insurance, duty and taxes. Delivery DAP to a GCC airport (Dubai, Jeddah, Doha and others) from USD 10,000 per complete system; indicative only, minor changes may apply. We ship worldwide — other destinations on request. An all-inclusive package to your site, including installation and operator training, is available on request. Final pricing is confirmed on quotation.
- 100+Systems installed worldwide
- 10sComplete vehicle scan
- IP65–67Rated for continuous duty

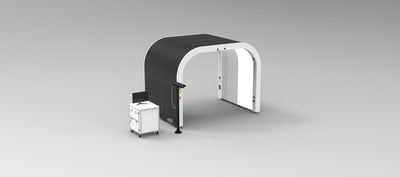

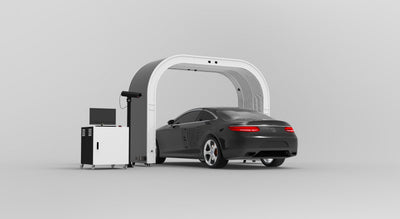

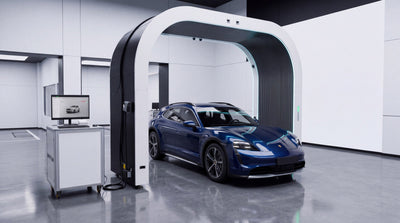

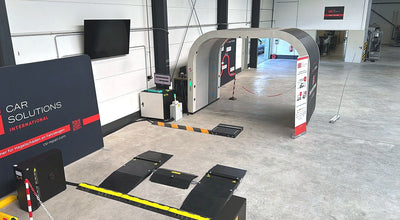

The flagship passenger configuration of the CXS ARCH. Seventeen industrial cameras capture the complete exterior surface at 4K during a ten-second drive-through, with structured light resolving deformation and homogeneous light resolving surface defects.
Detection
- Dents from 5 mm — classified by type and severity
- Scratches from 10 × 1 mm — length, width and depth dimensioned
- Every defect mapped to a specific body panel on the vehicle model
Specification
- Imaging array: 17 industrial cameras
- Image resolution: 4096 × 3000 px
- Dimensions (L×W×H): 2560 × 3700 × 2827 mm
- System weight: 420 kg
- Drive-through speed: up to 10 km/h
- Operating temperature: −10 °C to +50 °C
- Power supply: 110–220 V
- Connectivity: Gigabit Ethernet, open APIs, SAP-ready
- Server: local or cloud
Scope of delivery

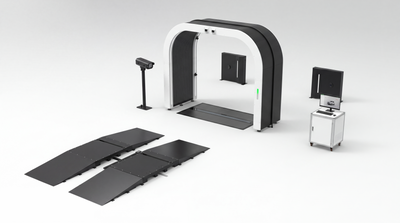

Scanner structure and camera array, high-performance processing unit, industrial control cabinet, licence-plate recognition, installation tooling and the software platform. Turnkey delivery includes shipping, customs clearance, installation, commissioning and on-site operator training.

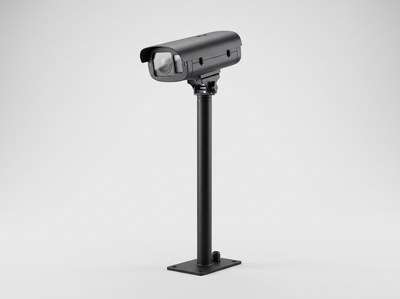

Accessory — Licence Plate Recognition Camera
Automatic number-plate recognition binds every scan to a vehicle identity on entry, so condition records attach to the right asset without manual data entry. One unit is included as standard in the scope of delivery above.
Additional or replacement units — for a second lane, a separate entry point, or a retrofit to an existing installation — are available on their own: Licence Plate Recognition (LPR) Module.
Next step
Every deployment starts with an assessment of your throughput and failure points, followed by a live demonstration and a deployment model built against your actual volume.
