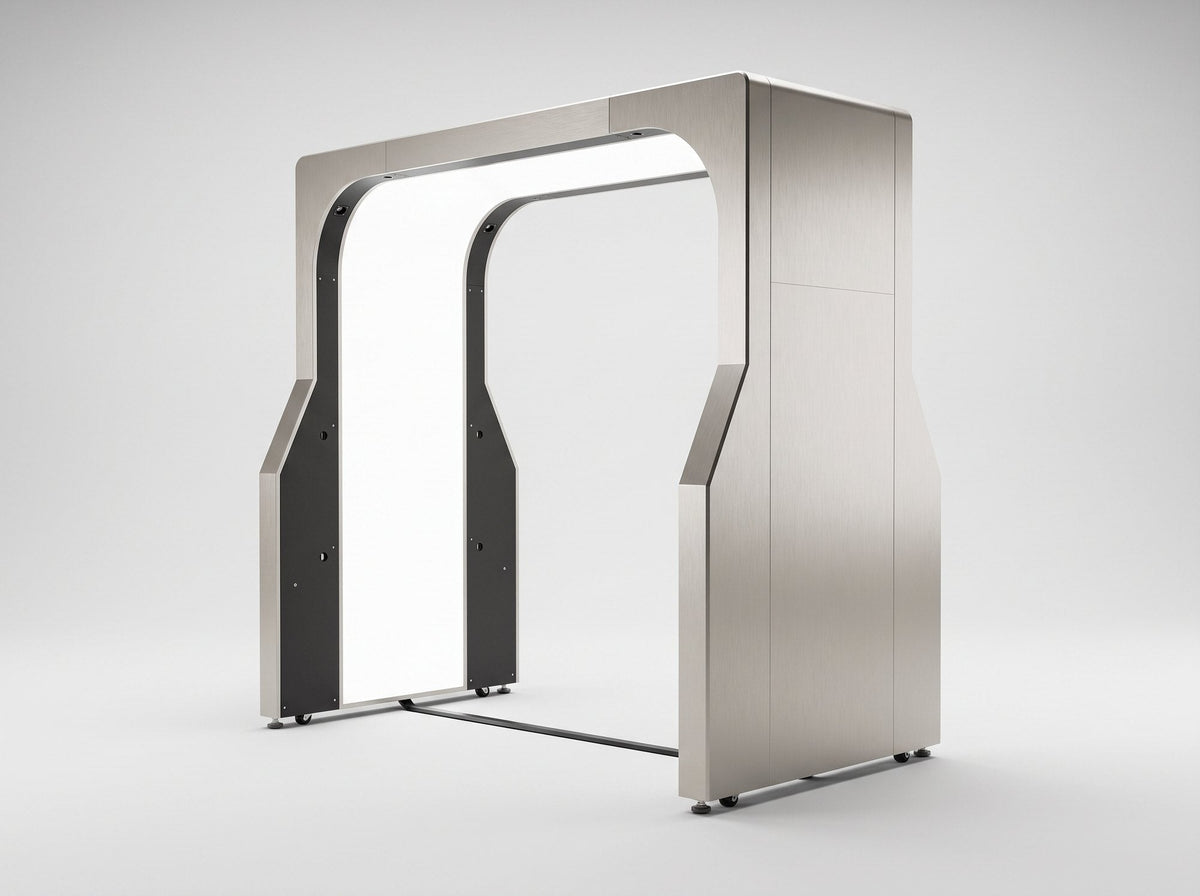

DRAGATE PRO — Commercial ARCH Scanner
Single unit, EXW Shanghai (Incoterms 2020) — exclusive of freight, insurance, duty and taxes. Delivery DAP to a GCC airport (Dubai, Jeddah, Doha and others) from USD 10,000 per complete system; indicative only, minor changes may apply. We ship worldwide — other destinations on request. An all-inclusive package to your site, including installation and operator training, is available on request. Final pricing is confirmed on quotation.
- 100+Systems installed worldwide
- 10sComplete vehicle scan
- IP65–67Rated for continuous duty

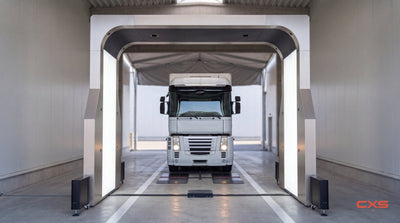

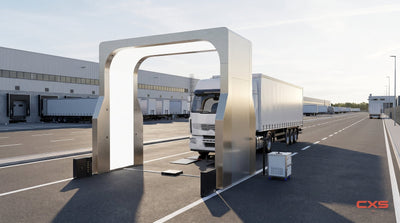

Purpose-built for trucks, buses and trailers. An arch specified up to 6 m inspects commercial vehicles up to 5.0 m tall in a single ten-second pass, with multi-angle true-colour capture and plate and colour identification.
Specification
- Max. vehicle height: up to 5.0 m
- Max. arch height: up to 6.0 m
- Dimensions (L×W): 2280 × 4000 mm — arch height configured to the site
- System weight: from 1,000 kg, depending on configured height
- Image: 2K HD true-colour, multi-angle
- Measurement accuracy: 1 cm
- Max. speed: 10 km/h
- Rated power: 380 V / 11 kW
- Installation: on-ground or in-ground
- Plate and colour identification, open APIs, SAP-ready
The arch is dimensioned per deployment — tell us the clearance your site needs and we specify against it.
Best suited to
Fleets, leasing operations, ports and terminals, customs authorities and logistics operators handling heavy vehicles at scale.
Accessory — Licence Plate Recognition Camera
Automatic number-plate recognition binds every scan to a vehicle identity on entry, so condition records attach to the right asset without manual data entry. Plate identification is included as standard in this configuration.
Additional or replacement units — for a second lane, a separate entry point, or a retrofit to an existing installation — are available on their own: Licence Plate Recognition (LPR) Module.
Next step
Every deployment starts with an assessment of your throughput and failure points, followed by a live demonstration and a deployment model built against your actual volume.
