Body Scanner

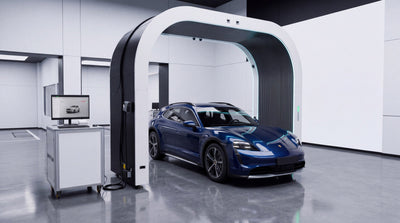

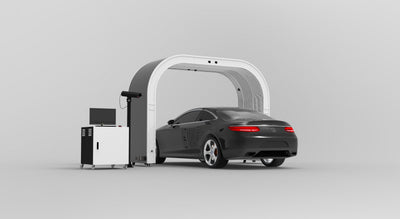

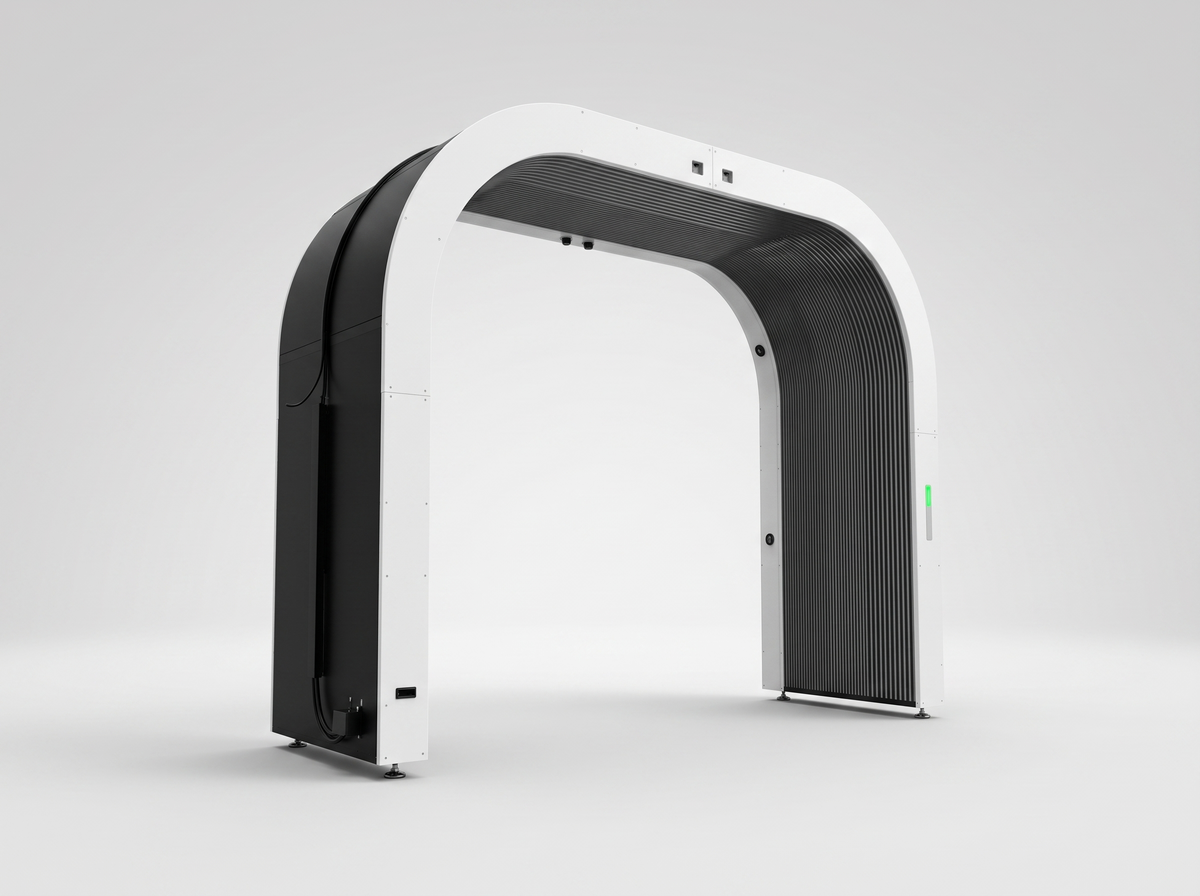

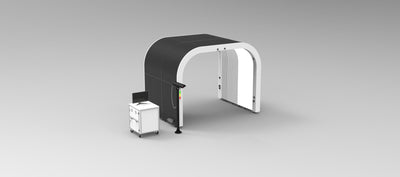

DRAGATE SE — 360° ARCH Body Scanner
Single unit, EXW Shanghai (Incoterms 2020) — exclusive of freight, insurance, duty and taxes. Delivery DAP to a GCC airport (Dubai, Jeddah, Doha and others) from USD 10,000 per complete system; indicative only, minor changes may apply. We ship worldwide — other destinations on request. An all-inclusive package to your site, including installation and operator training, is available on request. Final pricing is confirmed on quotation.
- 100+Systems installed worldwide
- 10sComplete vehicle scan
- IP65–67Rated for continuous duty
The efficient all-rounder for standard passenger inspection. Nine industrial cameras deliver full-surface drive-through capture where 10 mm dent sensitivity meets the operational requirement.
Detection
- Dents from 10 mm
- Full exterior surface captured during drive-through
- Automatic classification and panel mapping
Specification
- Imaging array: 9 industrial cameras
- Dimensions (L×W×H): 2560 × 3700 × 2827 mm
- Drive-through speed: up to 10 km/h
- Operating temperature: −10 °C to +50 °C
- Connectivity: Gigabit Ethernet, open APIs, SAP-ready
- Server: local or cloud
Best suited to
Dealer groups, inspection centres and remarketing operations running continuous vehicle flow where throughput matters more than sub-10 mm sensitivity.

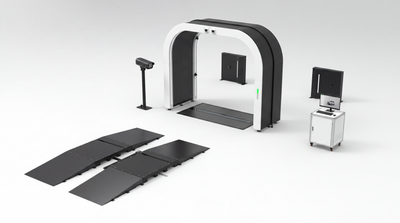

Accessory — Licence Plate Recognition Camera
Automatic number-plate recognition binds every scan to a vehicle identity on entry, so condition records attach to the right asset without manual data entry. One unit is included as standard in the ARCH scope of delivery.
Additional or replacement units — for a second lane, a separate entry point, or a retrofit to an existing installation — are available on their own: Licence Plate Recognition (LPR) Module.
Next step
Every deployment starts with an assessment of your throughput and failure points, followed by a live demonstration and a deployment model built against your actual volume.
