Tyre Module

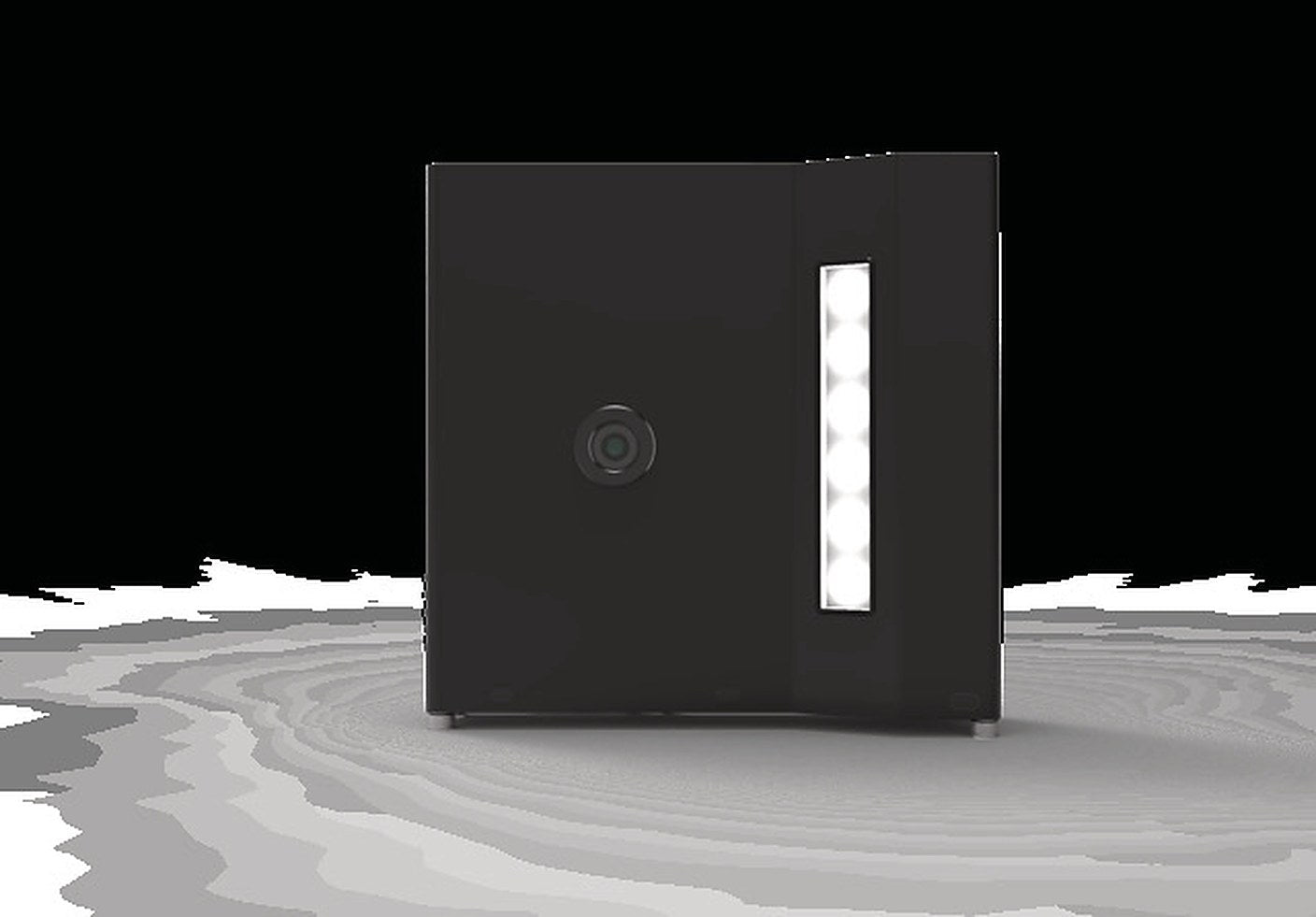

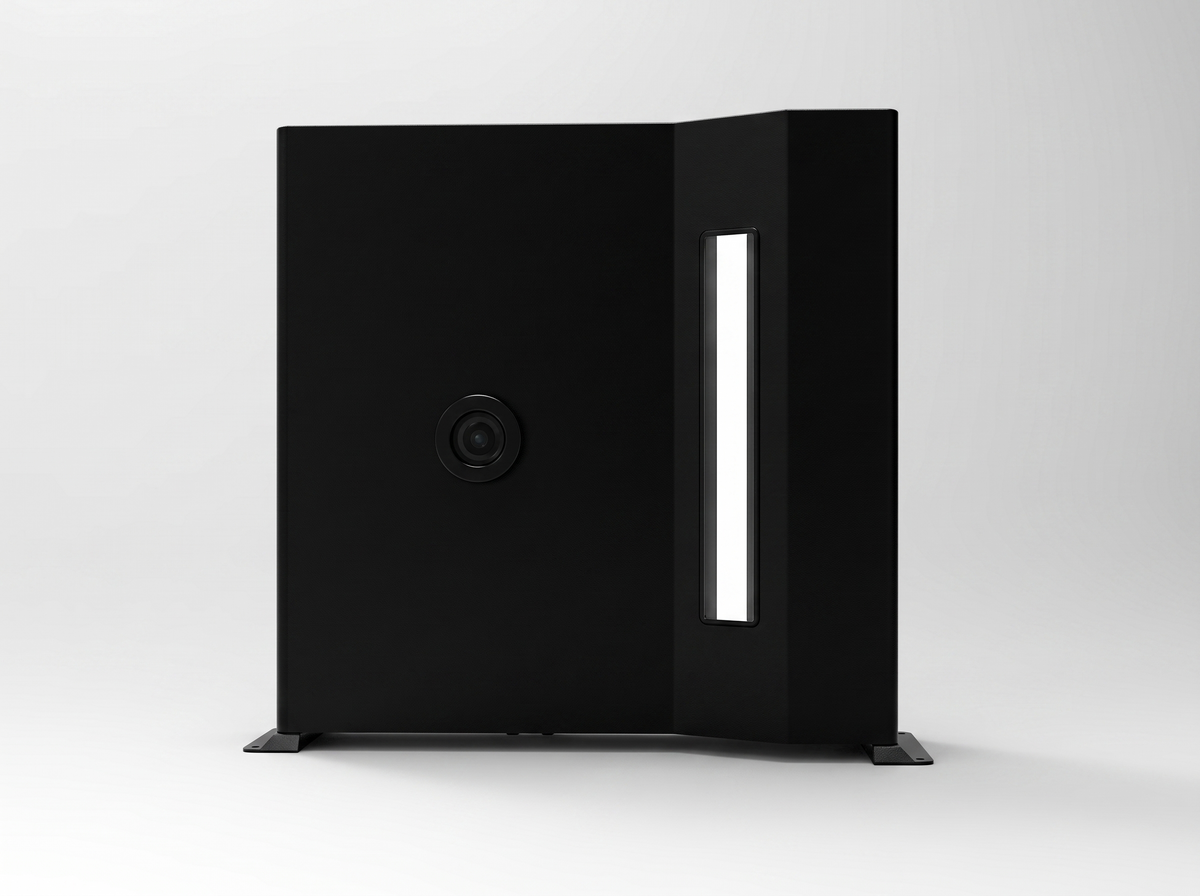

Tyre Sidewall Scanner — Passenger
Single unit, EXW Shanghai (Incoterms 2020) — exclusive of freight, insurance, duty and taxes. Delivery DAP to a GCC airport (Dubai, Jeddah, Doha and others) from USD 10,000 per complete system; indicative only, minor changes may apply. We ship worldwide — other destinations on request. An all-inclusive package to your site, including installation and operator training, is available on request. Final pricing is confirmed on quotation.
- 100+Systems installed worldwide
- 10sComplete vehicle scan
- IP65–67Rated for continuous duty
7K ultra-HD imaging of the tyre sidewall and wheel, captured as the vehicle passes. Identifies the structural tyre defects that a walk-around misses, and reads tyre identity automatically.
Detection

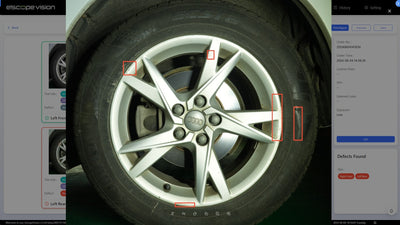

- Bulges, cuts and structural sidewall damage
- Kerb damage and scratches on wheels — objective basis for handover
- DOT number read automatically to identify tyre age
- Tyre brand and model identified for inventory and parts planning
Specification
- Image resolution: 7K Ultra-HD
- Cameras: 2 industrial
- Illumination: high-intensity LED flash
- Protection class: IP65
- Operating temperature: −10 °C to +50 °C
- Connectivity: Gigabit Ethernet · local or cloud-ready
Optimised for standard wheel diameters of passenger cars and vans. Compact design for integration into an existing lane.
Next step
Every deployment starts with an assessment of your throughput and failure points, followed by a live demonstration and a deployment model built against your actual volume.
