Tyre Module

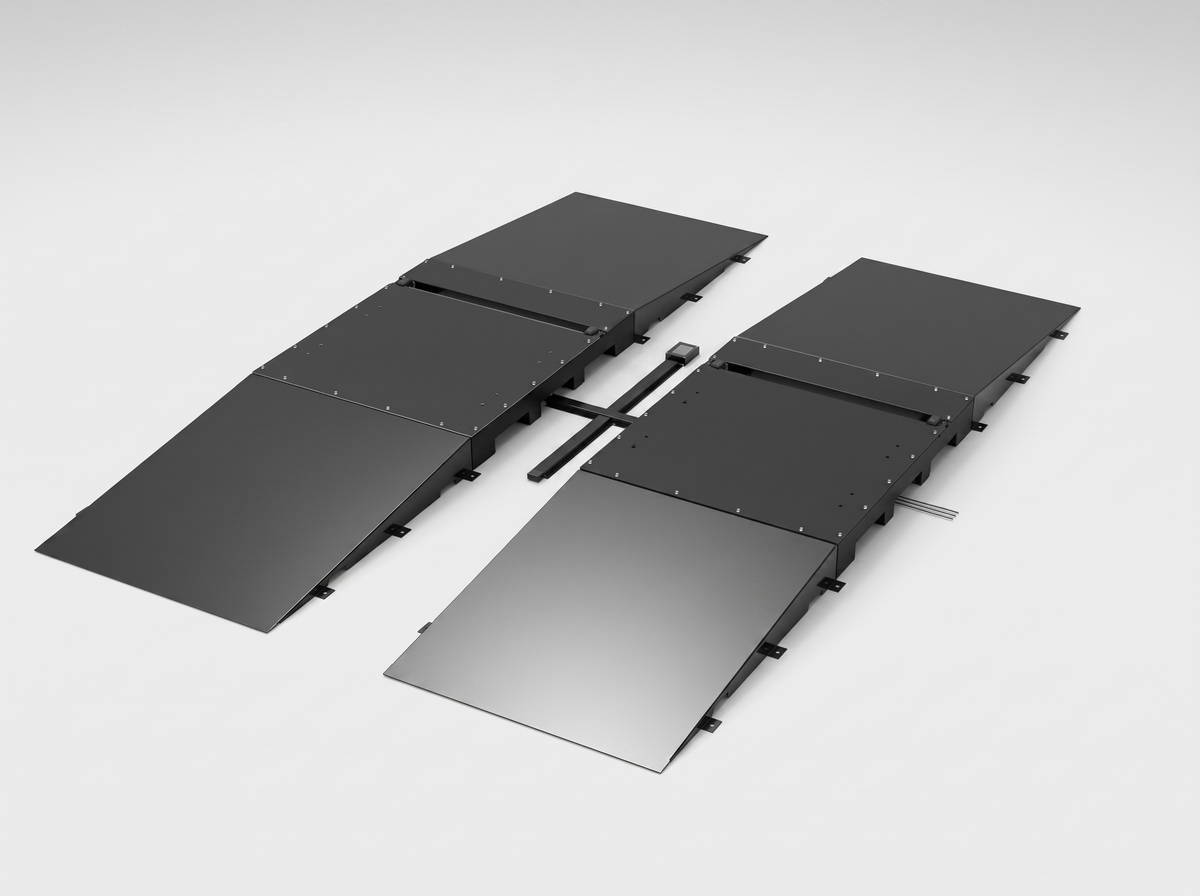

Tyre Tread Depth Scanner — Commercial
Single unit, EXW Shanghai (Incoterms 2020) — exclusive of freight, insurance, duty and taxes. Delivery DAP to a GCC airport (Dubai, Jeddah, Doha and others) from USD 10,000 per complete system; indicative only, minor changes may apply. We ship worldwide — other destinations on request. An all-inclusive package to your site, including installation and operator training, is available on request. Final pricing is confirmed on quotation.
- 100+Systems installed worldwide
- 10sComplete vehicle scan
- IP65–67Rated for continuous duty
The heavy-duty tread configuration, rated to a 13-tonne axle load and a 20 mm measurement range for commercial tyres.
Specification
- Measurement accuracy: 0.3 mm
- Tread depth range: 1–20 mm
- Effective measurement width: 900 mm
- Measurement time: 7 seconds
- Max. axle load: 13 t
- Applicable tyre diameter: 900–1100 mm
- Protection class: IP65
- Operating temperature: −10 °C to +50 °C
Why it matters
Tread depth is a regulated safety parameter on commercial vehicles. Automated measurement at every gate pass produces a compliance record without adding a manual inspection step.
Next step
Every deployment starts with an assessment of your throughput and failure points, followed by a live demonstration and a deployment model built against your actual volume.
