Tyre Module

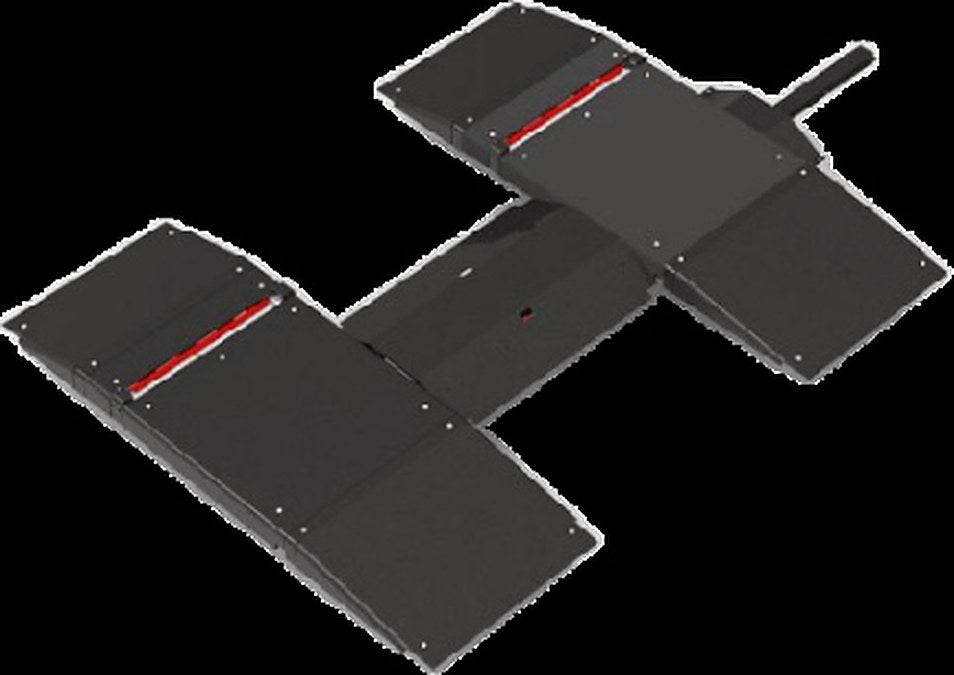

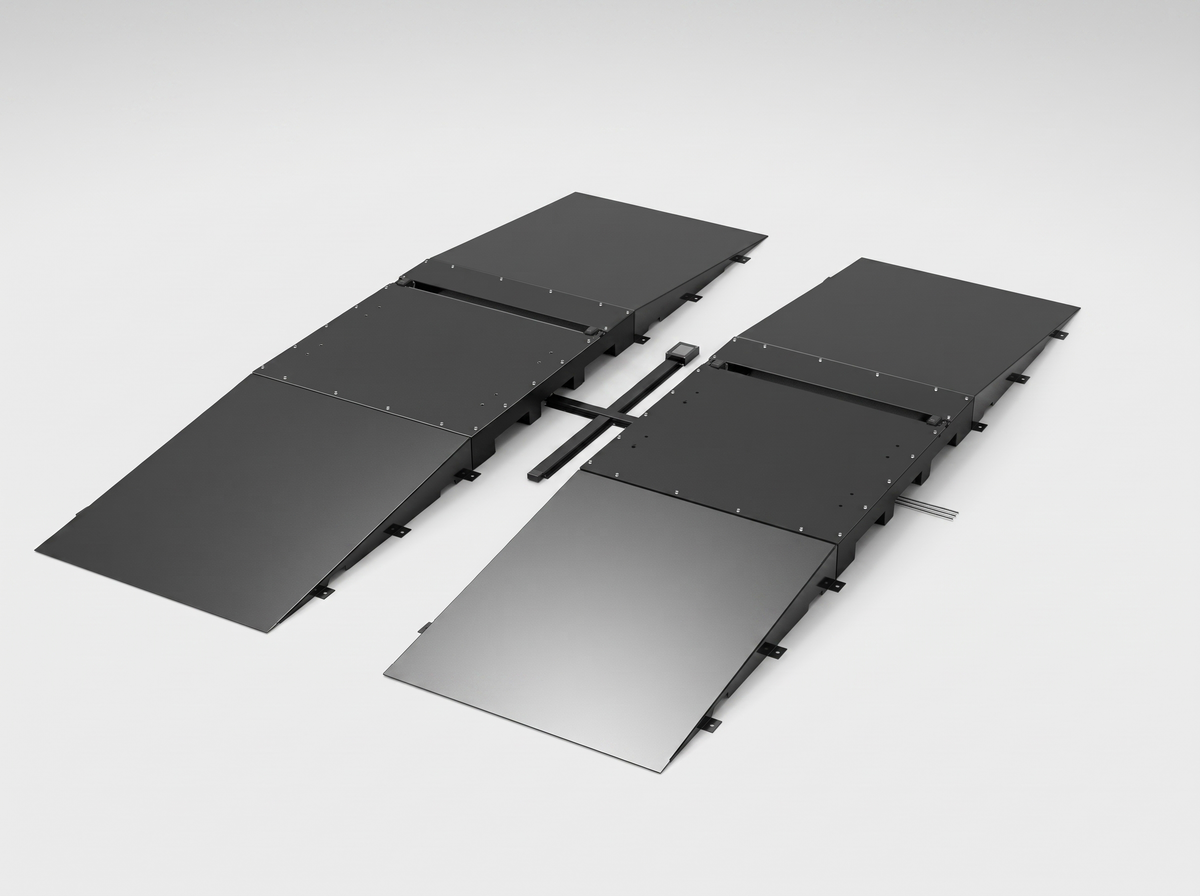

Tyre Tread Depth Scanner — Passenger
Single unit, EXW Shanghai (Incoterms 2020) — exclusive of freight, insurance, duty and taxes. Delivery DAP to a GCC airport (Dubai, Jeddah, Doha and others) from USD 10,000 per complete system; indicative only, minor changes may apply. We ship worldwide — other destinations on request. An all-inclusive package to your site, including installation and operator training, is available on request.
Modules can be ordered directly. Installation and commissioning are quoted separately — we contact you to schedule before despatch.
- 100+Systems installed worldwide
- 10sComplete vehicle scan
- IP65–67Rated for continuous duty

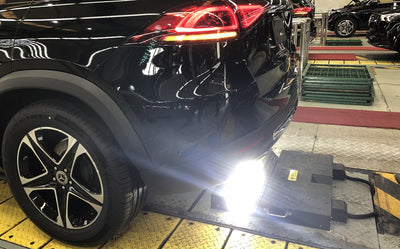

Measures every tread groove on every tyre while the vehicle drives past — no stopping, no manual gauge. Produces a diagnostic report in four seconds and the historical baseline for tyre lifecycle management.

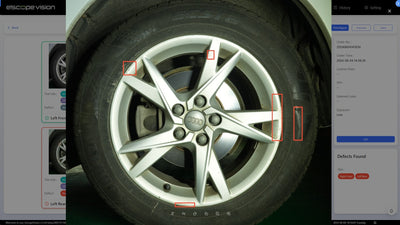

Report contents
- Exact tread depth of all grooves
- Identification of risks and defects
- Maintenance and replacement recommendations
- Historical data comparison across visits
Specification
- Measurement accuracy: 0.1 mm
- Tread depth range: 0–12 mm
- Effective measurement width: 500 mm
- Report time: 4 seconds
- Max. speed: 10 km/h · Max. axle load: 3 t
- Protection class: IP67 (waterproof)
- Operating temperature: −5 °C to +50 °C
Installation
- Floor (above-ground): 2240 × 1830 × 90 mm — quick retrofit
- In-ground (below-floor): 2180 × 735 × 90 mm — flush and drivable
Next step
Every deployment starts with an assessment of your throughput and failure points, followed by a live demonstration and a deployment model built against your actual volume.
