Chassis Module

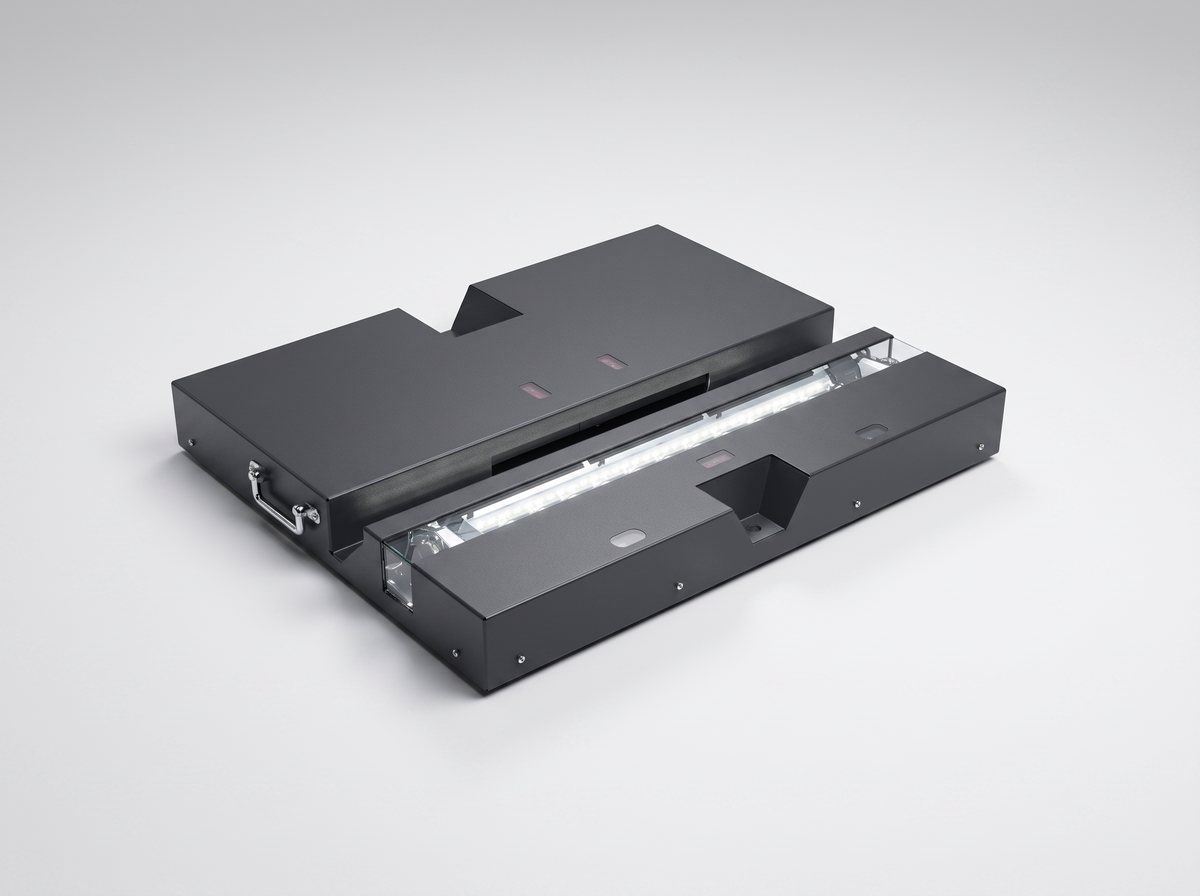

Undercarriage Scanner
Single unit, EXW Shanghai (Incoterms 2020) — exclusive of freight, insurance, duty and taxes. Delivery DAP to a GCC airport (Dubai, Jeddah, Doha and others) from USD 10,000 per complete system; indicative only, minor changes may apply. We ship worldwide — other destinations on request. An all-inclusive package to your site, including installation and operator training, is available on request.
Modules can be ordered directly. Installation and commissioning are quoted separately — we contact you to schedule before despatch.
- 100+Systems installed worldwide
- 10sComplete vehicle scan
- IP65–67Rated for continuous duty

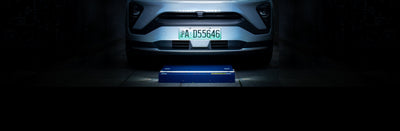

Drive-over chassis imaging that replaces inspection on the lift. 4K line-scan cameras with distortion-correction algorithms produce a true-to-scale image of the complete underbody, captured in synchronisation with driving speed.
Detection
- Oil leaks and fluid loss — engine, transmission, differential
- Structural corrosion on load-bearing components
- Mechanical damage — scrapes, exhaust damage, damaged covers
- Loose or missing components — heat shields, lines, fasteners
Specification — Floor (on-ground)
- Dimensions (L×W×H): 713 × 707 × 88 mm — no excavation required
- Weight: 42 kg · Protection class: IP65
Specification — In-ground
- Dimensions (L×W×H): 1400 × 900 × 244 mm — flush with floor
- Weight: 150 kg · Protection class: IP67
Common to both
- Image resolution: 4096 px line-scan
- Ground clearance: > 60 mm · Capture speed: 1–10 km/h
- Reaction time: < 1 s
Next step
Every deployment starts with an assessment of your throughput and failure points, followed by a live demonstration and a deployment model built against your actual volume.
